The factory MQB Gen3 plastic charge pipes and rubber couplers were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced, even on stock vehicles.

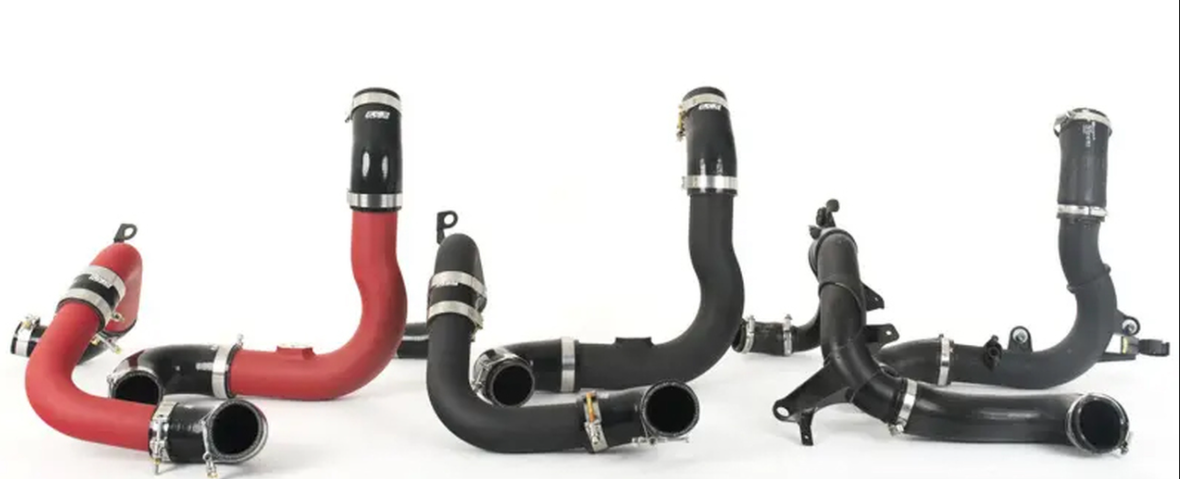

At ECS Tuning, we're proud to release our in house designed and engineered High Flow Intercooler Pipe Kit! Each kit comes standard with mandrel bent, bead rolled, powdercoated aluminum plumbing from the turbocharge to the throttle body, smooth flowing silicone couplers, stainless steel T-Bolt clamps and all installation accessories for an easy, direct bolt on installation.
The factory turbocharger outlet pipe has serious restriction right out of the compressor outlet due to small diameter tubing and irregular obstructions. We improved on this charge pipe by providing a smooth transitioning silicone coupler right off the turbo outlet which carries boost pressure to our carefully evaluated larger, 60mm (~2 3/8") tubing diameter intercooler pipes. The upper intercooler pipe features a CNC-machined and TIG welded mounting flange for the CNC-bent aluminum mounting bracket to allow for OE-like fitment. The lower intercooler pipe features a smooth transition into the silicone intercooler coupler for optimized flow.
Furthermore, the factory intercooler outlet pipe leaves room for improvement with its smaller diameter tubing and irregular obstructions. We improved on this charge pipe by providing a smooth transitioning silicone coupler right off the intercooler outlet which carries boost pressure to our carefully evaluated larger, 70mm (~2 3/4") tubing diameter throttle body pipe. The ECS intercooler outlet pipe features a CNC-machined and TIG welded MAP sensor mounting flange to allow for OE-like fitment. We've also include a smooth flowing silicone throttle body hose coupler to complete the transition from stock to better with our high quality parts.
Capable of withstanding greater heat and higher boost pressure than stock, you can expect to achieve greater reliability, less turbulence and less restriction thanks to the larger diameter tubing and smooth silicone bends. Never worry about blowing couplers off of our tubes, as each tube is bead rolled and secured with stainless T-bolt clamp over our 4-ply reinforced silicone couplers.
The Complete ECS High Flow Intercooler Charge Pipe Kit Include the following:
- ECS High Flow Turbo Outlet Pipe Kit:
- Silicone Turbo Outlet Coupler
- 60mm Upper Turbo Outlet Pipe, with CNC-Bent Mounting Bracket and Hardware
- Silicone Upper-to-Lower Turbo Outlet Pipe Coupler
- 60mm Lower Intercooler Pipe
- Silicone Intercooler Inlet Coupler
- Stainless Steel T-bolt Hose Clamps
- ECS High Flow Throttle Body Pipe Kit:
- Silicone Intercooler Outlet Coupler
- 70mm Throttle Body Intercooler Pipe w/ MAP sensor flange and mounting hardware
- Silicone Throttle Body Hose
- Stainless Steel T-bolt Clamps
Key Features:
- Reduces turbulence and increases air flow capacity
- Gains up to 10 WHP & 10 FT-lbs of torque with APR Stage 2 93 octane software, 3.0" Milltek turboback exhaust and ECS Kohlefaser Luft-Technik Air Intake with our High Flow Turbo Outlet Pipe Kit and Throttle Pipe Kit (Gains measured on MK7 Golf R)
- Mandrel bent and bead rolled aluminum tubing, powder coated in tough wrinkle black or wrinkle red finishes
- Replaces all rubber hoses from turbocharger-to-intercooler and intercooler-to-throttle body with 4-ply silicone upgrades
- CNC machined MAP flange TIG welded to intercooler pipe
- Replaces all rubber hoses from intercooler-to-throttle body with 4-ply silicone upgrades
- Easy, direct replacement upgraded part
- Installation PDF and video available online
**Fits 60mm intercooler inlet/outlet tubes in OE locations only
The factory MQB Gen3 plastic charge pipes and rubber couplers were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced, even on stock vehicles.
At ECS Tuning, we're proud to release our in house designed and engineered High Flow Intercooler Pipe Kit! Each kit comes standard with mandrel bent, bead rolled, powdercoated aluminum plumbing from the turbocharge to the throttle body, smooth flowing silicone couplers, stainless steel T-Bolt clamps and all installation accessories for an easy, direct bolt on installation.
The factory turbocharger outlet pipe has serious restriction right out of the compressor outlet due to small diameter tubing and irregular obstructions. We improved on this charge pipe by providing a smooth transitioning silicone coupler right off the turbo outlet which carries boost pressure to our carefully evaluated larger, 60mm (~2 3/8") tubing diameter intercooler pipes. The upper intercooler pipe features a CNC-machined and TIG welded mounting flange for the CNC-bent aluminum mounting bracket to allow for OE-like fitment. The lower intercooler pipe features a smooth transition into the silicone intercooler coupler for optimized flow.
Furthermore, the factory intercooler outlet pipe leaves room for improvement with its smaller diameter tubing and irregular obstructions. We improved on this charge pipe by providing a smooth transitioning silicone coupler right off the intercooler outlet which carries boost pressure to our carefully evaluated larger, 70mm (~2 3/4") tubing diameter throttle body pipe. The ECS intercooler outlet pipe features a CNC-machined and TIG welded MAP sensor mounting flange to allow for OE-like fitment. We've also include a smooth flowing silicone throttle body hose coupler to complete the transition from stock to better with our high quality parts.
Capable of withstanding greater heat and higher boost pressure than stock, you can expect to achieve greater reliability, less turbulence and less restriction thanks to the larger diameter tubing and smooth silicone bends. Never worry about blowing couplers off of our tubes, as each tube is bead rolled and secured with stainless T-bolt clamp over our 4-ply reinforced silicone couplers.
The Complete ECS High Flow Intercooler Charge Pipe Kit Include the following:
- ECS High Flow Turbo Outlet Pipe Kit:
- Silicone Turbo Outlet Coupler
- 60mm Upper Turbo Outlet Pipe, with CNC-Bent Mounting Bracket and Hardware
- Silicone Upper-to-Lower Turbo Outlet Pipe Coupler
- 60mm Lower Intercooler Pipe
- Silicone Intercooler Inlet Coupler
- Stainless Steel T-bolt Hose Clamps
- ECS High Flow Throttle Body Pipe Kit:
- Silicone Intercooler Outlet Coupler
- 70mm Throttle Body Intercooler Pipe w/ MAP sensor flange and mounting hardware
- Silicone Throttle Body Hose
- Stainless Steel T-bolt Clamps
Key Features:
- Reduces turbulence and increases air flow capacity
- Gains up to 10 WHP & 10 FT-lbs of torque with APR Stage 2 93 octane software, 3.0" Milltek turboback exhaust and ECS Kohlefaser Luft-Technik Air Intake with our High Flow Turbo Outlet Pipe Kit and Throttle Pipe Kit (Gains measured on MK7 Golf R)
- Mandrel bent and bead rolled aluminum tubing, powder coated in tough wrinkle black or wrinkle red finishes
- Replaces all rubber hoses from turbocharger-to-intercooler and intercooler-to-throttle body with 4-ply silicone upgrades
- CNC machined MAP flange TIG welded to intercooler pipe
- Replaces all rubber hoses from intercooler-to-throttle body with 4-ply silicone upgrades
- Easy, direct replacement upgraded part
- Installation PDF and video available online
**Fits 60mm intercooler inlet/outlet tubes in OE locations only
