do88 Performance 'Big Pack' Intercooler and Charge Pipe Kit for the MQB 2.0T EA888 Gen3
This is the latest version of the kit, compatible with the 7-Speed DQ381 DSG Gearbox, and all other Gearbox options.
The BigPack includes a full aluminium performance intercooler and a complete 2,5” pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance.

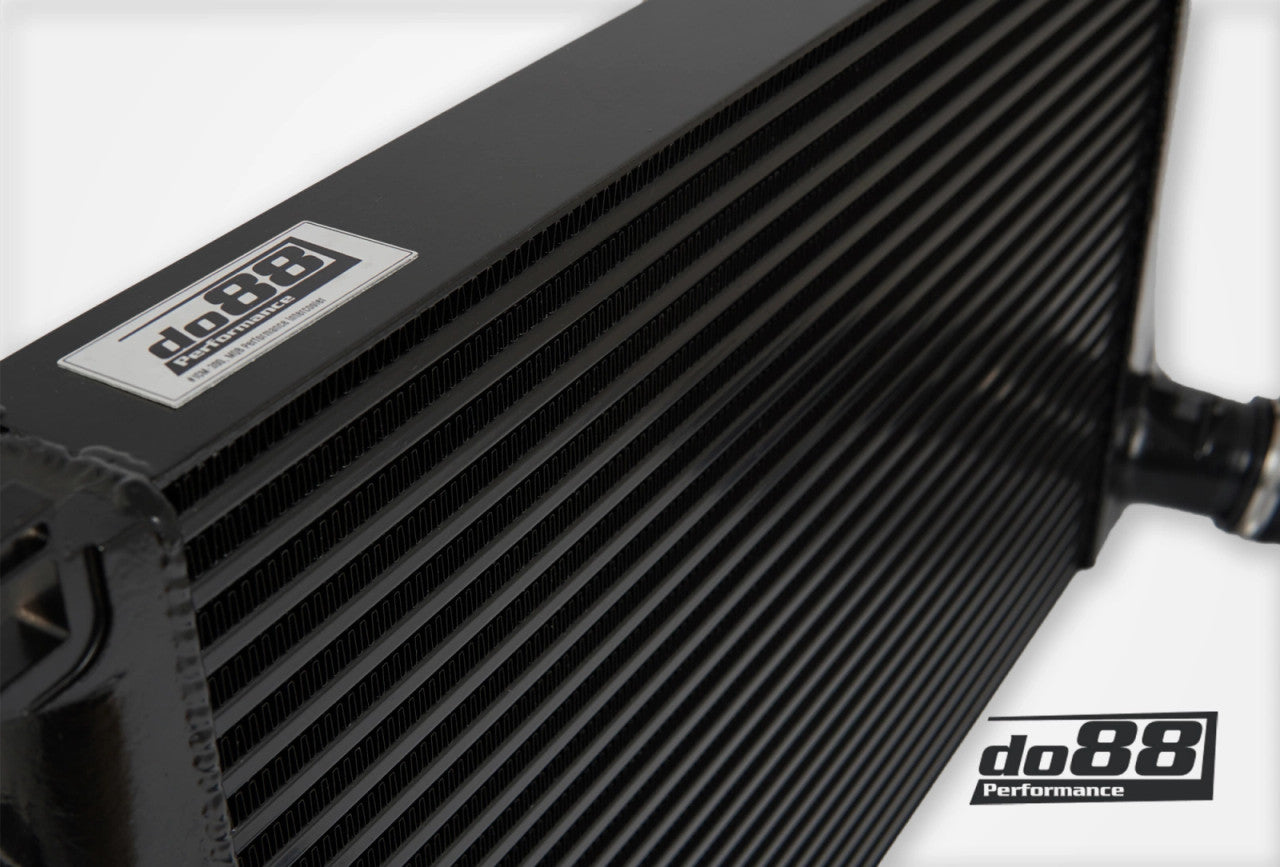

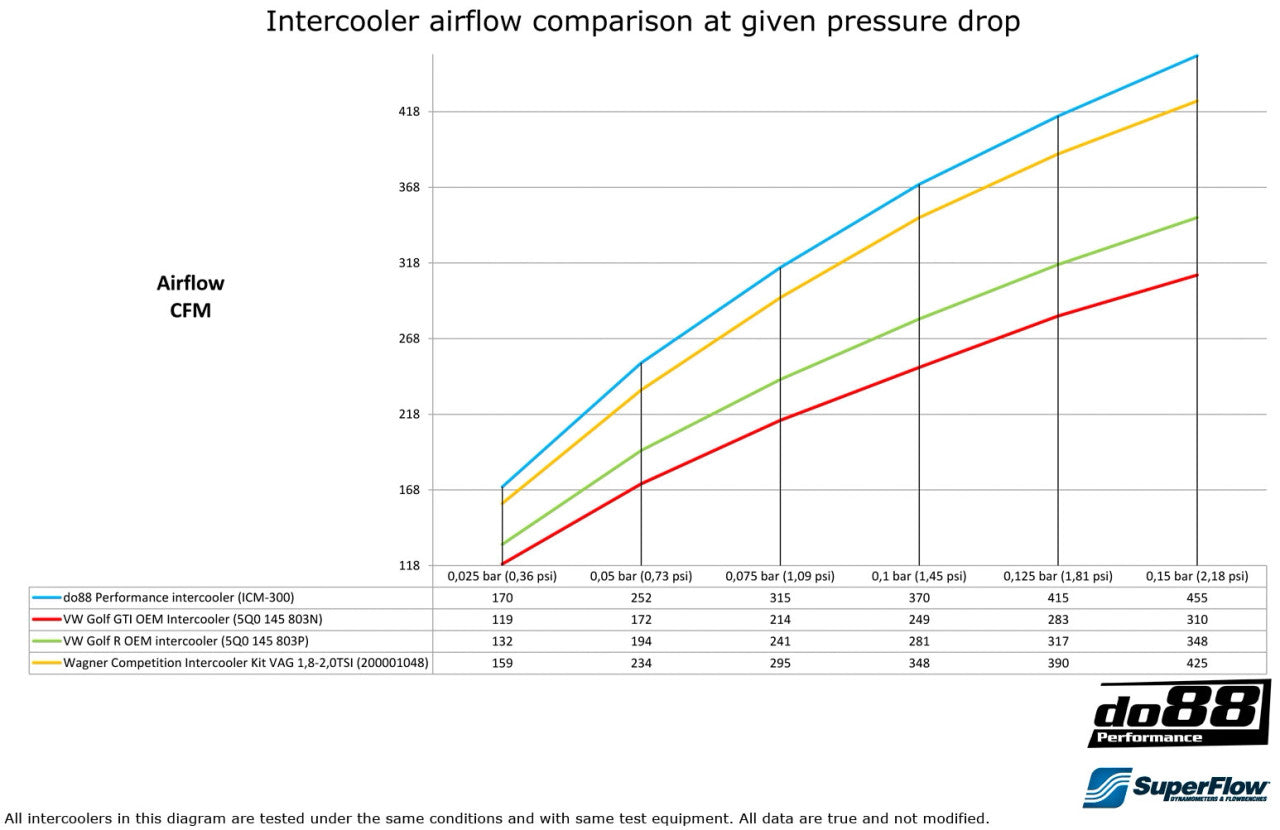

The do88 performance intercooler is an all-aluminium construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop!
The pressure pipes are manufactured in 2,5” mandrel bent seamless aluminium pipes.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better. But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install, partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved.
do88 BigPack comes with all hardware necessary for installation.
Compatible with the following Vehicles with the 1.8T/2.0T EA888 Gen3 Engines
- VW Golf Mk7 GTI
- VW Golf Mk7 GTI Clubsport
- VW Golf Mk7 'R'
- VW Passat B8
- VW Tiguan Mk2
- VW Arteon (upto 2020)
- Audi A3 8V - Trimming Instructions
- Audi S3 8V - Trimming Instructions
- Audi TT 8S
- Audi TTS 8S
- SEAT Leon Mk3 - Trimming Instructions
- SEAT Ateca Mk1
- Cupra Ateca Mk1
- Skoda Octavia vRS Mk3
- Skoda Superb Mk3
---> Click Here to download Intercooler Installation Instructions <---
---> Click Here to download Charge Pipe Kit Installation Instructions <---
do88 Performance 'Big Pack' Intercooler and Charge Pipe Kit for the MQB 2.0T EA888 Gen3
This is the latest version of the kit, compatible with the 7-Speed DQ381 DSG Gearbox, and all other Gearbox options.
The BigPack includes a full aluminium performance intercooler and a complete 2,5” pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance.
The do88 performance intercooler is an all-aluminium construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop!
The pressure pipes are manufactured in 2,5” mandrel bent seamless aluminium pipes.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better. But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install, partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved.
do88 BigPack comes with all hardware necessary for installation.
Compatible with the following Vehicles with the 1.8T/2.0T EA888 Gen3 Engines
- VW Golf Mk7 GTI
- VW Golf Mk7 GTI Clubsport
- VW Golf Mk7 'R'
- VW Passat B8
- VW Tiguan Mk2
- VW Arteon (upto 2020)
- Audi A3 8V - Trimming Instructions
- Audi S3 8V - Trimming Instructions
- Audi TT 8S
- Audi TTS 8S
- SEAT Leon Mk3 - Trimming Instructions
- SEAT Ateca Mk1
- Cupra Ateca Mk1
- Skoda Octavia vRS Mk3
- Skoda Superb Mk3
---> Click Here to download Intercooler Installation Instructions <---
---> Click Here to download Charge Pipe Kit Installation Instructions <---
