COMPETITION INTERCOOLER KIT for Ford Ranger :
Ford Ranger PX2 3,2TDCi (147kw/200PS) 2015-2019 [not for pre facelift models]

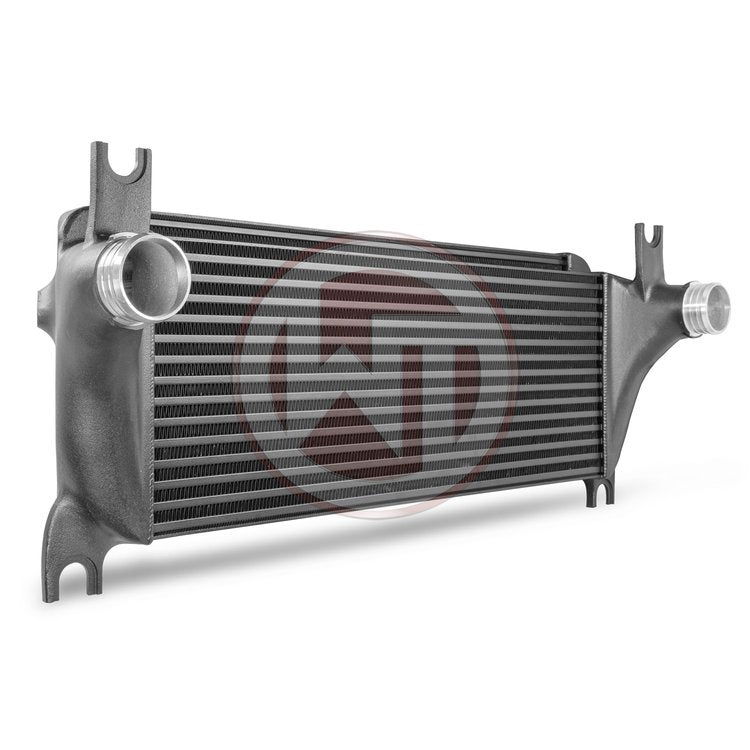

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 660 mm x 282 [254] mm x 120 [65] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped], which was developed especially for the requirements of the Ford Ranger diesel engine. This high-performance core offers an 32 % larger frontal surface and 279 % more core volume compared to the stock intercooler.

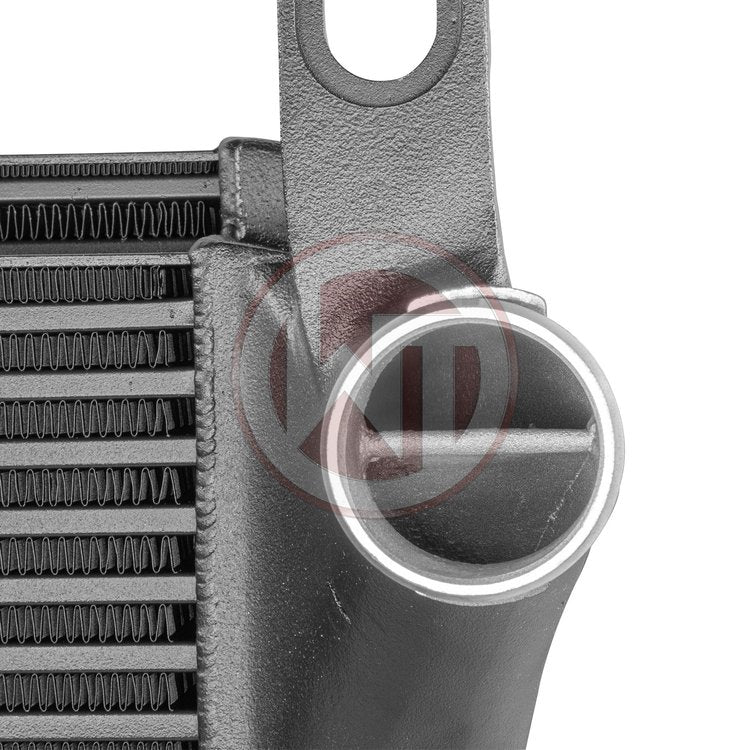

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Inlet diameter: Ø60 mm/2,36 Inch ; Outlet diameter Ø60 mm/2,36 Inch
Dimensions stock intercooler:
670 mm x 210 mm x 40 mm / 26,4 Inch x 8,3 Inch x 1,6 Inch
V = 5,62 L / 214,2 Inch³
A = 1407 cm² / 108,8 Inch²
Dimensions WAGNERTUNING intercooler:
660 mm x 282 [254] mm x 120 [65] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped]
V = 21,3L / 653 Inch³
A = 1861 cm² / 142,5 Inch²
kit comes with:
1 intercooler
2 silicone hoses
1 mounting material
1 installation instruction
.jpg)
Ford Ranger PX2 3,2TDCi (147kw/200PS) 2015-2019 [not for pre facelift models]
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 660 mm x 282 [254] mm x 120 [65] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped], which was developed especially for the requirements of the Ford Ranger diesel engine. This high-performance core offers an 32 % larger frontal surface and 279 % more core volume compared to the stock intercooler.
The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Inlet diameter: Ø60 mm/2,36 Inch ; Outlet diameter Ø60 mm/2,36 Inch
Dimensions stock intercooler:
670 mm x 210 mm x 40 mm / 26,4 Inch x 8,3 Inch x 1,6 Inch
V = 5,62 L / 214,2 Inch³
A = 1407 cm² / 108,8 Inch²
Dimensions WAGNERTUNING intercooler:
660 mm x 282 [254] mm x 120 [65] mm [stepped] / 21,6 Inch x 6,6 [5,5] Inch x 4,7 [3,9] Inch [stepped]
V = 21,3L / 653 Inch³
A = 1861 cm² / 142,5 Inch²
kit comes with:
1 intercooler
2 silicone hoses
1 mounting material
1 installation instruction
